PIPE LAYERS -> SP90Y

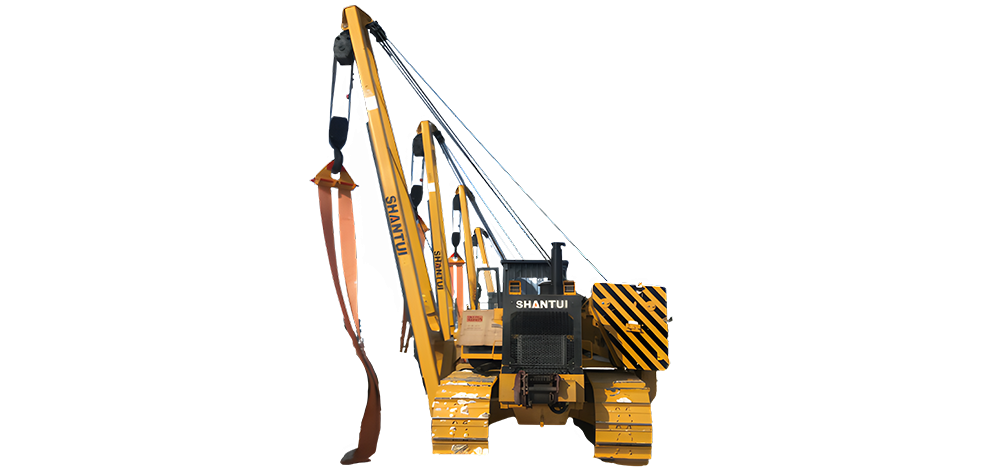

SP90Y
SP90Y

Description

Configuration selling point The dedicated engine delivers robust power and exceptional efficiency, while the pilot operation driven by the load-sensitive hydraulic system enables stable lifting and precise control. Ease of maintenance and operation comfort The fully openable side guard offers a spacious maintenance area. Working valves are externally located to facilitate quick assembly and disassembly. Centralized pressure testing is equipped to enable convenient maintenance. Adaptability to diverse working conditions The extended boom enables a broad operational scope, while the high-strength four wheels and one track self-manufactured by Shantui ensure exceptional reliability and an extended service life.

Specification

Operating Weight (Ton): 59.5
Rated Power(kW/rpm): 235/1850
Maximum Lift Capacity (Ton): 90
Standard Boom Length (m): 8.6
Engine: NTA855-C360S10
Maximum Torque(Nm/rpm): 1440/1400
Width of track shoe (mm): 860
Ground Clearance(mm): 500
Number of Carrier Rollers (each side): 2
Number of Track Rollers (each side): 7
Counter Weight (kg): 12*910
Length of wire rope (m): 95
External Dimensions (mm): 5630*4127*3850
Min boom swing amplitude (mm): 1220
Max boom swing amplitude (mm): 8900
